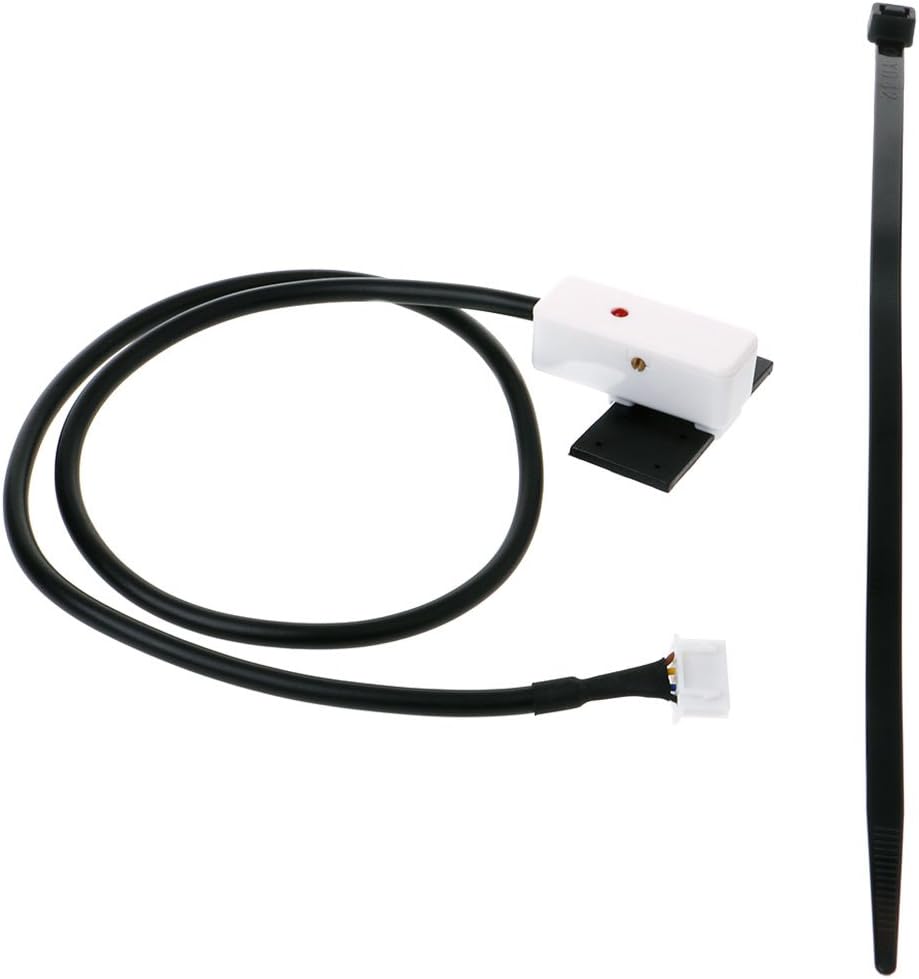

Engine Coolant Level Sensor, M14 Installation Thread, Water Level Sensor, Triode Open Collector OC Output, NC Normally Closed, 5-35VDC Working Voltage, 100mA Maximum Output Current

Specification: Item Type: Coolant Level Sensor Installation Thread: M14 Working Mode: NC, normally closed. Working Voltage: 5-35VDC Output Mode: Triode open collector OC. Maximum Output Current: 100mA Output End Maximum Working Voltage: 35V DC How to Use: Install to use. Package List: 1 xCoolant Level Sensor 6 x Accessory

• Broad in Application: Can be used in equipment and devices that require water level alarms, and is also suitable for non corrosive liquid with similar electrical resistivity like water.
• Simpler Installation: Designed to have M14 installation thread, the engine coolant sensor with a light weight and a compact size is very convenient to install within several minutes.
• Coolant Level Sensor: When the water level of the water is lower than the probe position of the alarm sensor, the sensor outputs the switch to the generator control device.
• For Stable : The engine coolant level sensor can better promote low water level alarm and shutdown function for stable and working performance as well as higher efficiency.
• The Feature: The normally closed water level sensor has 5-35V DC working voltage, triode open collector OC output, and 100mA maximum output current during the .
