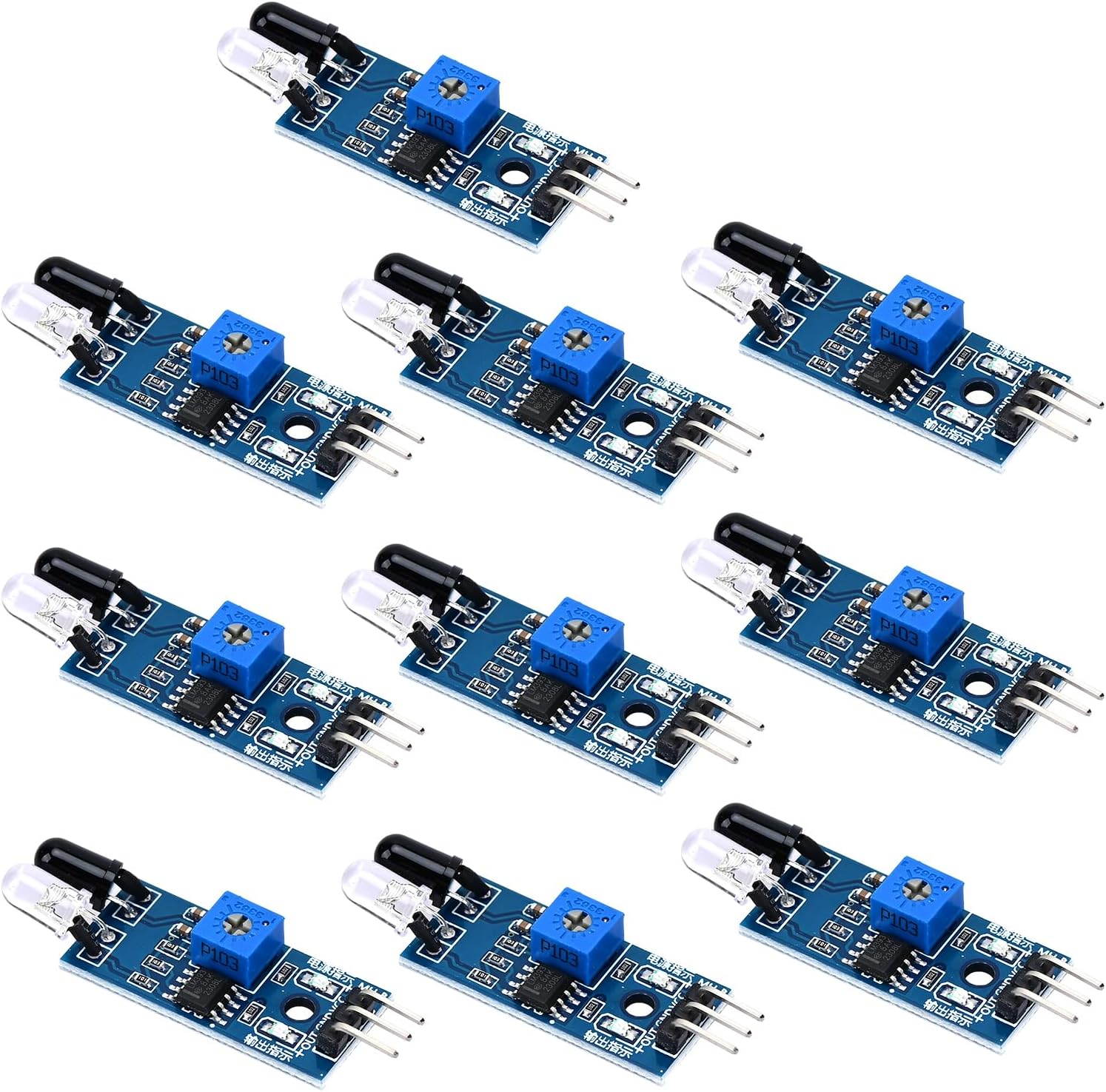

10pcs IR Infrared Obstacle Avoidance Sensor Module for Smart car Robot 3 Wire Photoelectric Reflection Sensor

What is IR infrared obstacle avoidance sensor module?The sensor module has strong adaptability to ambient light. It has a pair of infrared transmitting and receiving tubes. The transmitting tube emits infrared rays of a certain frequency.When the detection direction encounters an obstacle (reflective surface), the infrared rays are reflected back and received by the receiving tube. After processing by the comparison circuit, the green indicator light lights up, and the signal output interface outputs a digital signal (low-level signal). The detection distance can be adjusted through the potentiometer knob.Product Parameter：1. The effective distance range is 2~30cm, and the working voltage is 3.3V-5V.2. It has 3mm screw holes for easy fixing and installation.3. Circuit board size: 3.2CM*1.4CMModule Interface Description：✔VCC external 3.3V-5V voltage (can be directly connected to 5v microcontroller and 3.3v microcontroller)✔GND external GND✔OUT small board digital output interface (0 and 1)Package Included：10x IR infrared obstacle avoidance sensor module

• 【Chip】The comparator uses LM393, which works stably.
• 【Features】The detection distance of this sensor can be adjusted through a potentiometer, and it has the characteristics of low interference, easy assembly and easy use.
• 【Adjustable Distance】The detection distance of the infrared module is 2 to 30 cm, and the detection angle is 35 degrees, the distance The distance at which the potential can be detected is adjustable.
• 【Sensor Specification】Working voltage 3.3V-5V. With a wide voltage LM393 comparatorith. Output format: digital switching output (0 and 1). TCRT5000 infrared reflection sensor is adopted, detection reflection distance: 1mm~25mm applicable.
• 【Widely Application】It is used in many situations such as robot obstacle avoidance, obstacle avoidance car, assembly line counting, and black,white line tracking,vibration triggering functions, reporting burglary alarms, smart cars, earthquake alarms, motorcycle alarms, etc.
